Helvie® Single Blades
*ALL BLADES ARE SHAPED & SHARPENED BY HAND ON A BELT SANDER BY RICH SMITHSON. SOME SMALL/MINOR VARIATIONS ARE POSSIBLE.
Please keep in mind that these blades are very sharp. Use extreme caution when working with them. **Helvie® Knives LLC is not responsible for any injuries incurred while working with these sharp blades. We sell these sharp, single blades so that wood carvers have the option to handle their own knives to their liking. We do not sell them to be resold.
SLOYD 3" - Sloyd blade approximately 3" cutting edge on the curve, 5/8" wide, and .055" (1.397mm) thick.
HOGGER 2 1/4" - Hogger straight blade approximately 2 1/4" cutting edge, 5/8" wide, and .055" (1.397mm) thick.
ROUGHOUT 2 1/4" - Roughout straight blade approximately 2 1/4" cutting edge, 7/16" wide and .05" (1.27mm) thick.
ROUGHOUT 2" - Roughout straight blade approximately 2" cutting edge, 7/16" wide and .05" (1.27mm) thick.

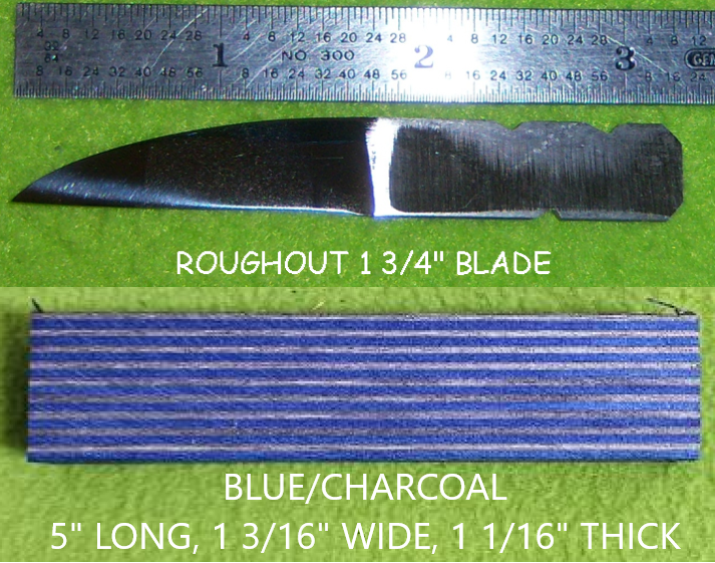

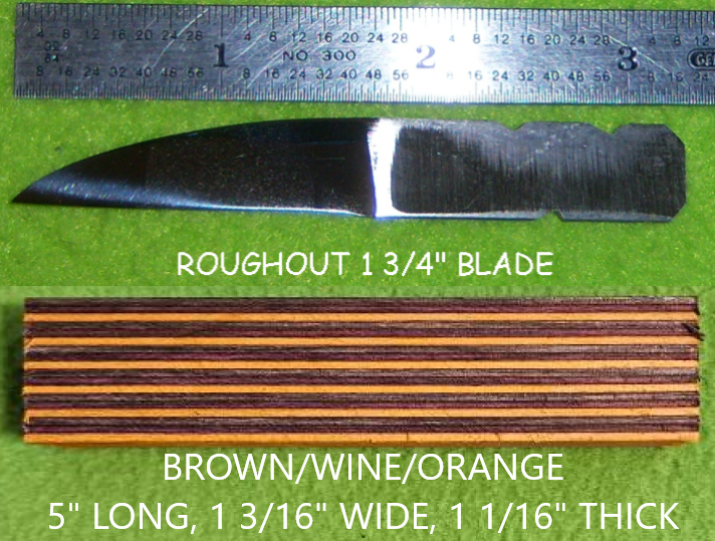

ROUGHOUT 1 3/4" - Roughout straight blade approximately 1 3/4" cutting edge, 7/16" wide and .05" (1.27mm) thick.
MEDIUM ROUGHOUT - Roughout straight blade approximately 1 3/4" with a cutting edge of 1 1/2", 7/16" wide and .05" (1.27mm) thick.
SMALL ROUGHOUT - Roughout straight blade approximately 1 5/8" cutting edge, 7/16" wide and .05" (1.27mm) thick.
MINI DETAIL 1" - Mini detail straight blade approximately 1" cutting edge, 3/16" wide and .05" (1.27mm) thick.
MEDIUM DETAIL 1 1/4" - Medium Detail straight blade approximately 1 1/4" cutting edge, 3/8" wide and .035" (.889mm) thick.
MEDIUM DETAIL 1 1/2" - Medium Detail straight blade approximately 1 1/2" cutting edge, 3/8" wide and .035" (.889mm) thick.
DETAIL 1 1/4" - Detail straight blade approximately 1 1/4" cutting edge, 5/16" wide and .032" (.81mm) thick.
DON MERTZ #1 - Roughout blade approximately 2 1/4" cutting edge, 1/2" wide, and .05"(1.27mm) thick
DON MERTZ #2 - Roughout blade approximately 2 1/4" cutting edge, 1/2" wide, and .05" (1.27mm) thick

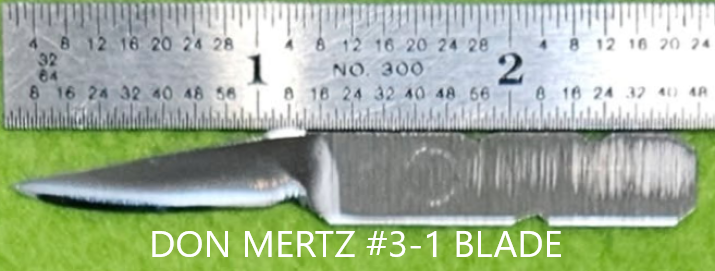

DON MERTZ #3-1 - Medium Detail blade approximately 1 1/8" cutting edge, 3/8" wide, and .035 (.889mm) thick.

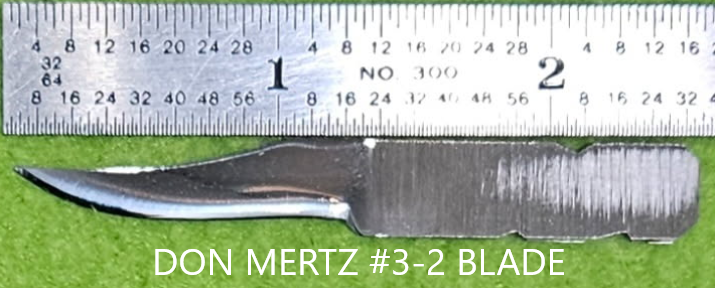

DON MERTZ #3-2 - Medium Detail blade approximately 1 1/8" cutting edge, 3/8" wide, and .035 (.889mm) thick.
DON MERTZ #5 - Roughout blade approximately 1 1/2" cutting edge, 1/2" wide, and .05" (1.27mm) thick
DON MERTZ #7 - Medium detail blade approximately 1 3/4" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #8 - Hogger blade approximately 1 1/2" cutting edge, 5/16" wide, and .055" (1.397mm) thick
DON MERTZ #10 - Roughout blade approximately 2" in length, 1/2" wide, and .05" (1.27mm) thick, with a cutting edge of 1".
DON MERTZ #12 - Medium detail blade approximately 1 1/8" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #13 - Medium detail blade approximately 1" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #14 - Medium detail blade approximately 7/8" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #17 - Medium detail blade approximately 1 1/8" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve & on the end. Blade can be used for both a sweeping cut and a push tool.
DON MERTZ #21 - Roughout blade approximately 1 1/2" cutting edge, 1/2" wide, and .05" (1.27mm) thick. Sharpened on the curve.
DON MERTZ #23 - Medium detail blade approximately 1 1/2" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #28 - Roughout blade approximately 1 1/4" cutting edge, 1/2" wide, and .05" (1.27mm) thick. Sharpened on the curve.

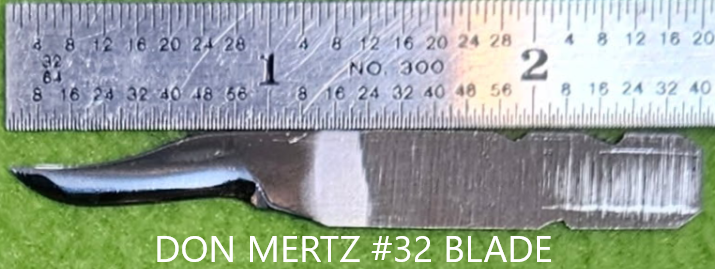

DON MERTZ #32 - Medium detail blade approximately 7/8" in cutting edge, 3/8" wide, and .035" (.889mm) thick
DON MERTZ #37 - Medium detail blade approximately 1" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve & on the end. Blade can be used for both a sweeping cut and a push tool.
DON MERTZ #38 - Medium detail blade approximately 1 3/4" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
SMALL BROAD AXE - Has an approximate blade length of 1 3/4", with a cutting edge of approximately 7/16", and is .05" (1.27mm) thick.
LARGE BROAD AXE - Has an approximate blade length of 1 3/4", with a cutting edge of approximately 9/16", and is .05" (1.27mm) thick.
FLEX 1 3/4" -Flex straight blade approximately 1 3/4" cutting edge, 1/2" wide and .035" (.889mm) thick.

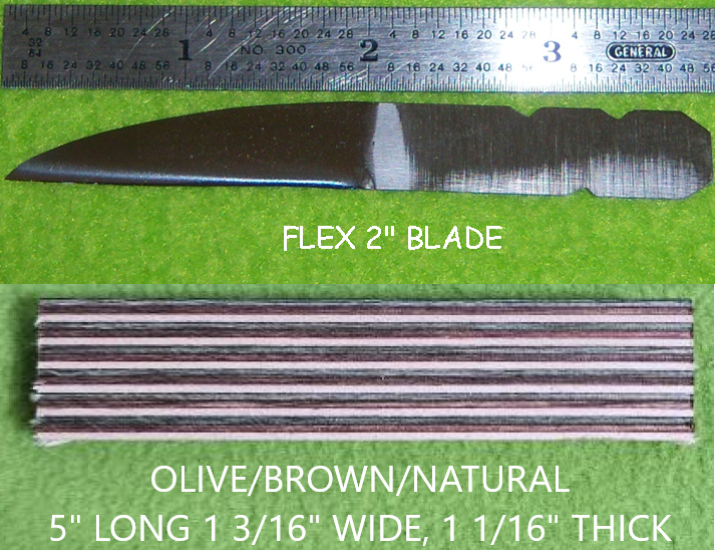

FLEX 2" -Flex straight blade approximately 2" cutting edge, 1/2" wide and .035" (.889mm) thick.
MINI HOGGER 1 1/2" - Straight blade approximately 1 1/2" cutting edge, 5/16" wide and .055" (1.397mm) thick.
MINI HOGGER 1 3/4" - Straight blade approximately 1 3/4" cutting edge, 5/16" wide and .055" (1.397mm) thick.

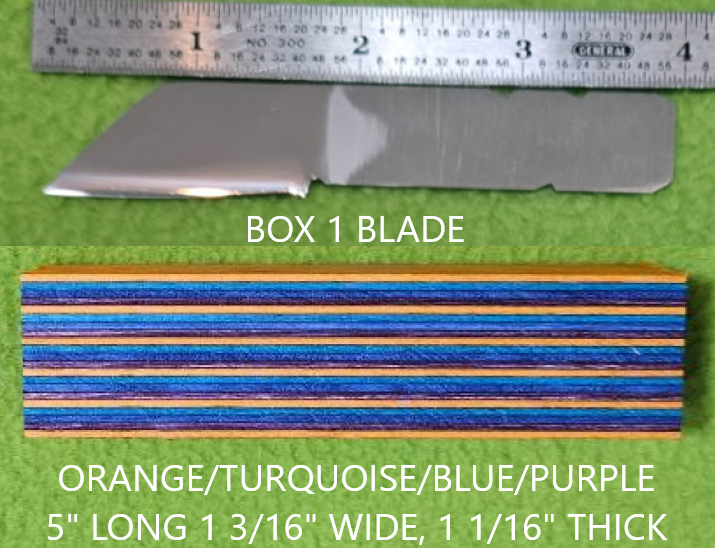

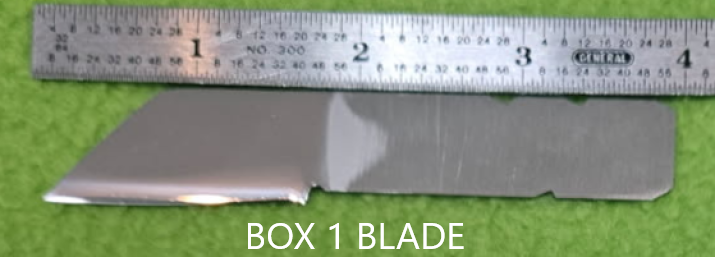

BOX 1 - Medium Detail steel approximately 1 5/8" cutting edge, 3/4" wide and .035" (.889mm) thick.

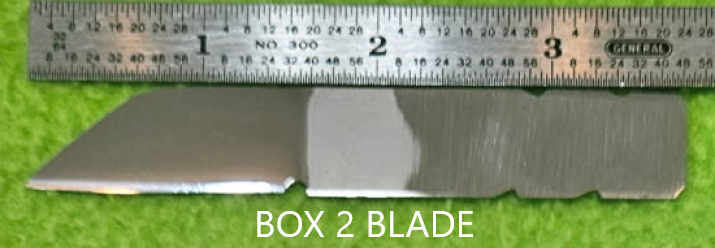

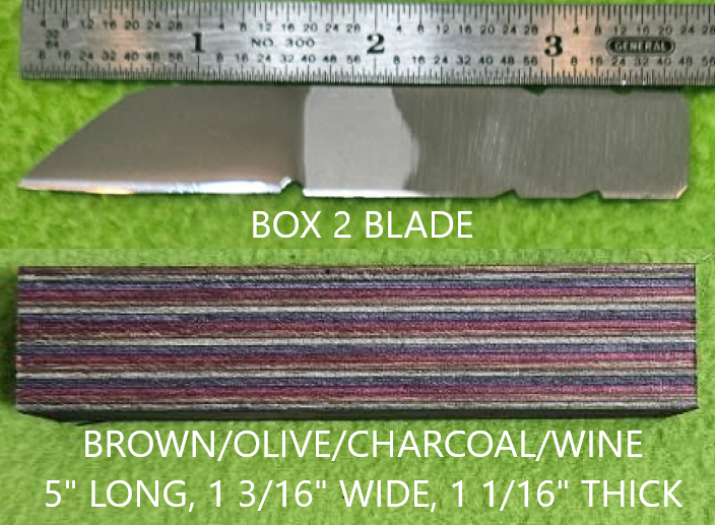

BOX 2 - Medium Detail steel approximately 1 5/8" cutting edge, 5/8" wide and .035" (.889mm) thick.

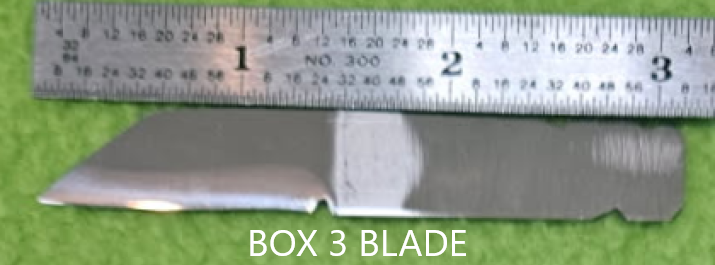

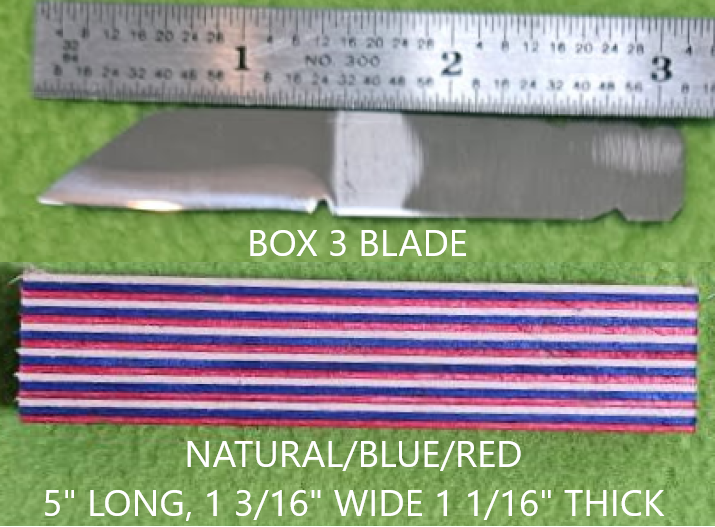

BOX 3 - Medium Detail steel approximately 1 1/2" cutting edge, 1/2" wide and .035" (.889mm) thick.
JUGGERNAUT - Medium Detail steel approximate cutting edge of 1 3/4", 1/2" wide and .035" (.889mm) thick.
HOGGERNAUT - Hogger steel approximate cutting edge of 2 1/4", 5/8" wide and .055" (1.397mm) thick
BULLNOSE GOUGE SMALL - Medium detail steel approximately 3/8" in width and .035" (.889mm) thick. Sharpened on one side only.
BULLNOSE GOUGE MEDIUM - Medium detail steel approximately 1/2" in width and .035" (.889mm) thick. Sharpened on one side only.
*DISCLAIMER NOTE: Blades are beveled for carving softer woods.
