Helvie® Single Blades
*ALL BLADES ARE SHAPED & SHARPENED BY HAND ON A BELT SANDER BY RICH SMITHSON. SOME SMALL/MINOR VARIATIONS ARE POSSIBLE.
Please keep in mind that these blades are very sharp. Use extreme caution when working with them. **Helvie® Knives LLC is not responsible for any injuries incurred while working with these sharp blades.
SLOYD 3" - Sloyd blade approximately 3" cutting edge on the curve, 5/8" wide, and .055" (1.397mm) thick.
HOGGER 2 1/4" - Hogger straight blade approximately 2 1/4" cutting edge, 5/8" wide, and .055" (1.397mm) thick.
ROUGHOUT 2 1/4" - Roughout straight blade approximately 2 1/4" cutting edge, 7/16" wide and .05" (1.27mm) thick.
ROUGHOUT 2" - Roughout straight blade approximately 2" cutting edge, 7/16" wide and .05" (1.27mm) thick.
ROUGHOUT 1 3/4" - Roughout straight blade approximately 1 3/4" cutting edge, 7/16" wide and .05" (1.27mm) thick.
MEDIUM ROUGHOUT - Roughout straight blade approximately 1 3/4" with a cutting edge of 1 1/2", 7/16" wide and .05" (1.27mm) thick.
SMALL ROUGHOUT - Roughout straight blade approximately 1 5/8" cutting edge, 7/16" wide and .05" (1.27mm) thick.

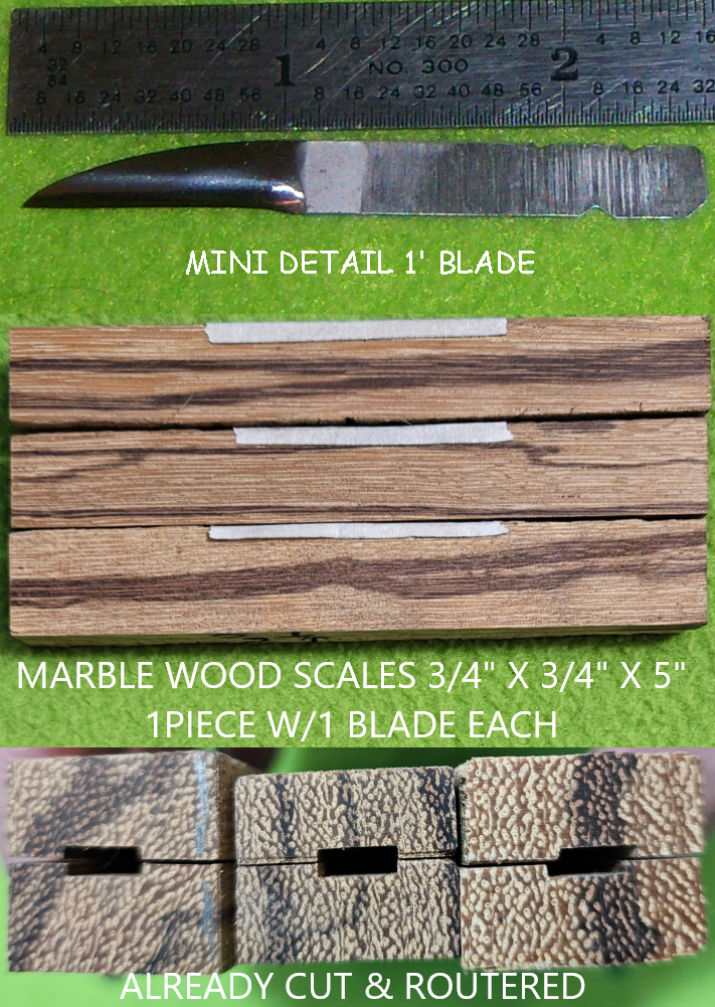

MINI DETAIL 1" - Mini detail straight blade approximately 1" cutting edge, 3/16" wide and .05" (1.27mm) thick.
MEDIUM DETAIL 1 1/4" - Medium Detail straight blade approximately 1 1/4" cutting edge, 3/8" wide and .035" (.889mm) thick.
MEDIUM DETAIL 1 1/2" - Medium Detail straight blade approximately 1 1/2" cutting edge, 3/8" wide and .035" (.889mm) thick.
DETAIL 1 1/4" - Detail straight blade approximately 1 1/4" cutting edge, 5/16" wide and .032" (.81mm) thick.
DON MERTZ #1 - Roughout blade approximately 2 1/4" cutting edge, 1/2" wide, and .05"(1.27mm) thick
DON MERTZ #2 - Roughout blade approximately 2 1/4" cutting edge, 1/2" wide, and .05" (1.27mm) thick
DON MERTZ #5 - Roughout blade approximately 1 1/2" cutting edge, 1/2" wide, and .05" (1.27mm) thick
DON MERTZ #7 - Medium detail blade approximately 1 3/4" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #8 - Roughout blade approximately 1 1/2" cutting edge, 5/16" wide, and .055" (1.397mm) thick
DON MERTZ #10 - Roughout blade approximately 2" in length, 1/2" wide, and .05" (1.27mm) thick, with a cutting edge of 1".
DON MERTZ #12 - Medium detail blade approximately 1 1/8" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #13 - Medium detail blade approximately 1" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #14 - Medium detail blade approximately 7/8" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #17 - Medium detail blade approximately 1 1/8" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve & on the end. Blade can be used for both a sweeping cut and a push tool.
DON MERTZ #21 - Roughout blade approximately 1 1/2" cutting edge, 1/2" wide, and .05" (1.27mm) thick. Sharpened on the curve.
DON MERTZ #23 - Medium detail blade approximately 1 1/2" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
DON MERTZ #28 - Roughout blade approximately 1 1/4" cutting edge, 1/2" wide, and .05" (1.27mm) thick. Sharpened on the curve.
DON MERTZ #37 - Medium detail blade approximately 1" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve & on the end. Blade can be used for both a sweeping cut and a push tool.
DON MERTZ #38 - Medium detail blade approximately 1 3/4" cutting edge, 3/8" wide, and .035" (.889mm) thick. Sharpened on the curve.
ROGER STEGALL #2 - Roughout scimitar blade approximately 2" cutting edge, 1/2" wide, and .05" (1.27mm) thick
ROGER STEGALL #3 - Detail scimitar blade approximately 1 3/4" cutting edge, 3/8" wide, .032" (.81mm) thick
SMALL BROAD AXE - Has an approximate blade length of 1 3/4", with a cutting edge of approximately 7/16", and is .05" (1.27mm) thick.
LARGE BROAD AXE - Has an approximate blade length of 1 3/4", with a cutting edge of approximately 9/16", and is .05" (1.27mm) thick.
FLEX 2" -Flex straight blade approximately 2" cutting edge, 1/2" wide and .035" (.889mm) thick.
MINI HOGGER 1 1/2" - Straight blade approximately 1 1/2" cutting edge, 5/16" wide and .055" (1.397mm) thick.
MINI HOGGER 1 3/4" - Straight blade approximately 1 3/4" cutting edge, 5/16" wide and .055" (1.397mm) thick.
*DISCLAIMER NOTE: Blades are beveled for carving softer woods.
